M/V KURTARMA 5 & KURTARMA 6

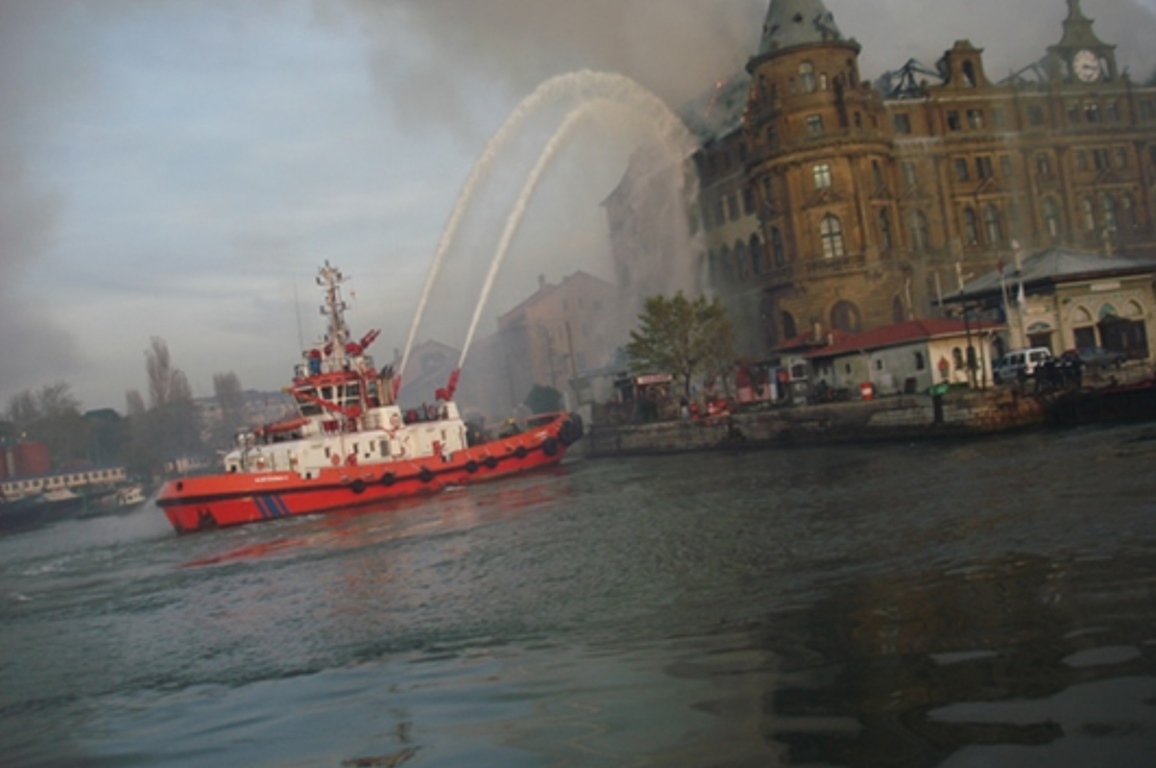

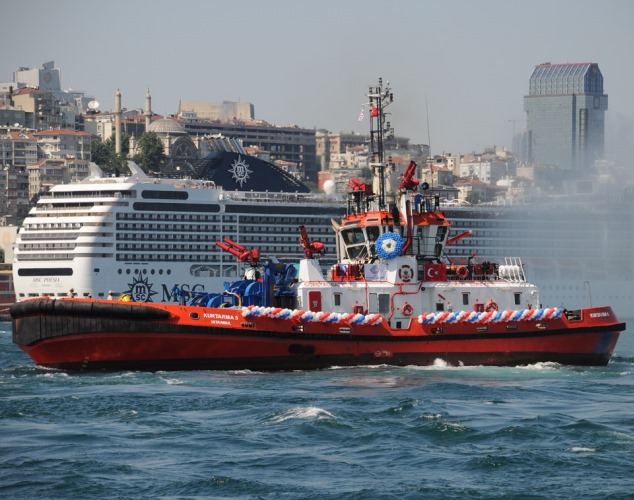

We designed two sisters Fire-Fighting Escort Tug Boat to "Directorate General of Coastal Safety" for their escort & safety activities. Tug Boats named as "KURTARMA 5" & "KURTARMA 6"

The vessel designed and constructed as a Escort Tug Boat equipped with 2xVSP VOITH 32R5/265-2 propulsion unit for maximum maneuvering.

The vessel have 3 fire-fighting pumps & 4 fire monitors with the total capacity of 9600m3.The vessels have one self-tensioned towing hydraulic winch with the capacity of 60 tons.

    TECHNICAL SPECIFICATIONS

  • Name of Vessel: KURTARMA 5 & KURTARMA 6
  • Owner: Directorate General of Coastal Safety
  • Type of Vessel: Fire Fighting Escort Tug Boat
  • Flag: Turkish
  • Classification Society: Turk loydu
  • Hull Material: Steel Gr.A
  • Max Speed: 14.5
  • Accommodation: 6 person

    • MAIN DIMENSIONS

  • LOA: 37.60m
  • LBP: 37.00m
  • Moulded Breadth: 12.00m
  • Maximum Breadth: 12.00m
  • Depth: 4.50m
  • Draught: 3.15m
  • Deadweight: 335
  • Gross Tonnage: 497

    • MAIN PROPULSION

  • Main Engine: 2xABC 12DZC-1000-176
  • Power: 2x2800kW@1000rpm
  • Propeller: 2xVSP VOITH 32R5/265-2
  • Generators: 2x190kVA+1x90kVA

    • CAPACITIES

  • Cargo: n.a.
  • Ballast: 95m3
  • HFO: n.a.
  • MDO: 155m3
  • FW: 30m3
