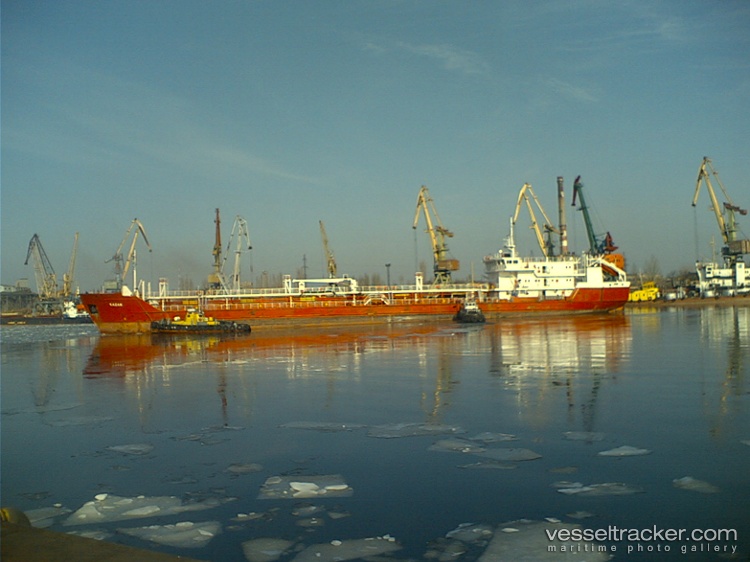

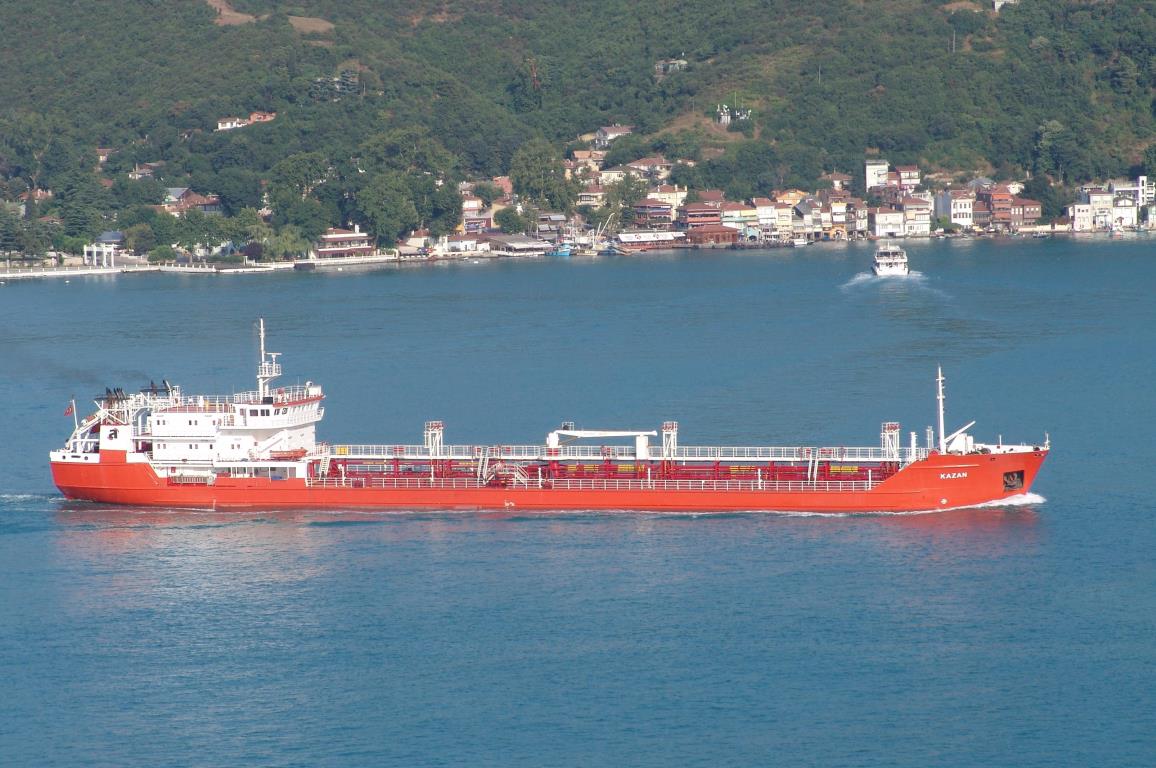

M/T KAZAN

We designed this IMO II CHEMICAL TANKER to "ASLI SHIPPING TRADING CO" for their operations in Black Sea area. Tanker named as "KAZAN"

The vessel designed and constructed as a twin screw, diesel driven IMO II CHEMICAL TANKER carrying maximum 3 grades of the different types of the chemical Products, with double hull construction in cargo area, accommodation and machinery space located aft.

The vessel have 12 (eleven) independent cargo tanks with the total capacity of 4150 m3, 3 screw type cargo pump located in pump room, in charge for the cargo operations.

    TECHNICAL SPECIFICATIONS

  • Name of Vessel: M/T KAZAN
  • Owner: Burtrans
  • Type of Vessel: Sea-River Type IMO II Chemical Tanker
  • Flag: Turkish
  • Classification Society: R.M.R.S. & Turk Loydu
  • Hull Material: Steel Gr.A & AH36
  • Max Speed: 12.0
  • Accommodation: 15
  • MAIN DIMENSIONS

  • LOA: 114.40m
  • LBP: 110.90m
  • Moulded Breadth: 16.20m
  • Maximum Breadth: 16.20m
  • Depth: 6.10m
  • Draught: 4.16m
  • Deadweight: 4050t.
  • Gross Tonnage: 3500
  • MAIN PROPULSION

  • Main Engine: 2xMAK 6M20
  • Power: abt.2x750kW@1000rpm
  • Propeller: 2xFixed Pitch Propeller
  • Generators: 3x200 kVA
  • CAPACITIES

  • Cargo: 4150m3
  • Ballast: 2430m3
  • HFO: 170m3
  • MDO: 65m3
  • FW: 120m3
