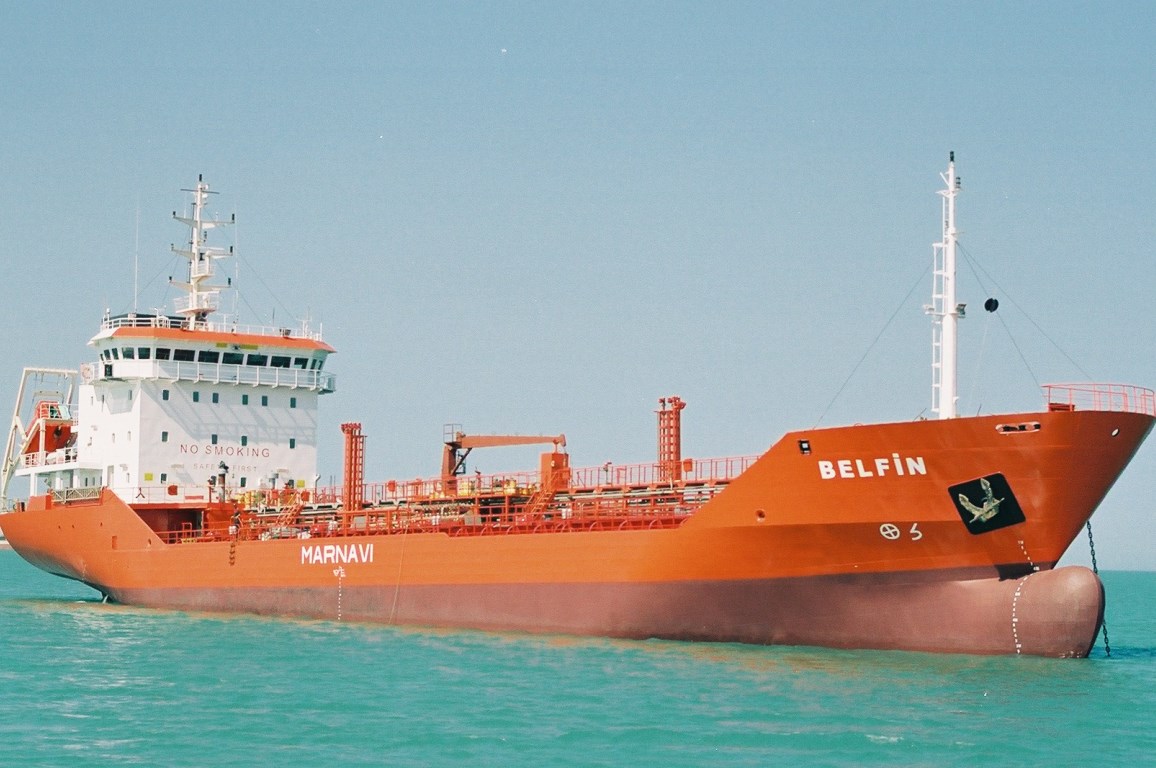

M/T BELFIN

We designed this CHEMICAL TANKER to "BIRLESIK SHIPPING CO" for their commercial business. Tanker named as "BELFIN"

The vessel designed and constructed as a single screw, diesel driven IMO II CHEMICAL TANKER CAN carry 11 different cargo grades, with double hull construction in cargo area, accommodation and machinery space located aft.

The vessel have 11 (eleven) independent cargo tanks with the total capacity of 5150m3, 11 deepwell type cargo pump located on main deck, in charge for the cargo operations.

    TECHNICAL SPECIFICATIONS

  • Name of Vessel: M/T BELFIN
  • Owner: Birlesik Denizcilik
  • Type of Vessel: IMO II Chemical Tanker
  • Flag: Turkish
  • Classification Society: Bureau Veritas
  • Hull Material: Steel Gr.A & AH36
  • Max Speed: 13.5
  • Accommodation: 17
  • MAIN DIMENSIONS

  • LOA: 99.90m
  • LBP: 92.50m
  • Moulded Breadth: 15.00m
  • Maximum Breadth: 15.00m
  • Depth: 7.60m
  • Draught: 6.16m
  • Deadweight: 4650t.
  • Gross Tonnage: 2997
  • MAIN PROPULSION

  • Main Engine: MAK 8M25
  • Power: 240kW@750rpm
  • Propeller: C.P.P. (Dia:3.75)
  • Generators: 3x200 kVA
  • CAPACITIES

  • Cargo: 5150m3
  • Ballast: 1890m3
  • HFO: 200m3
  • MDO: 55m3
  • FW: 95m3
