M/T AYA

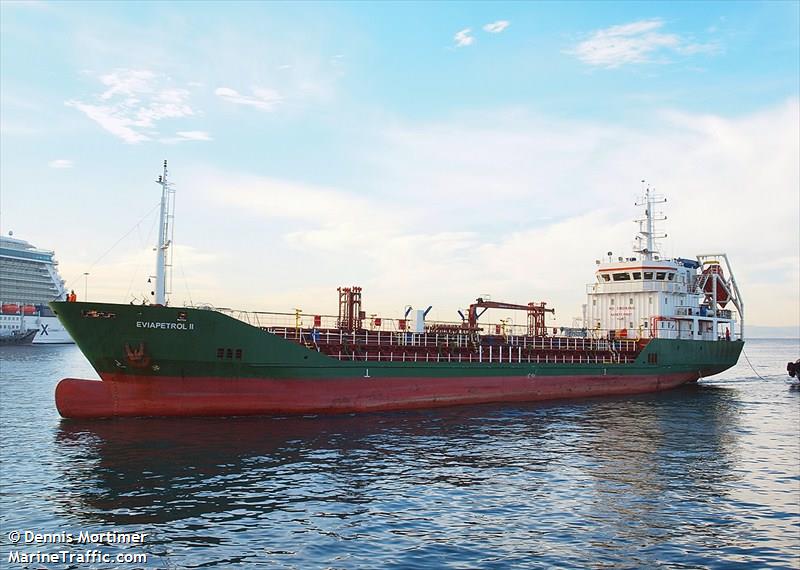

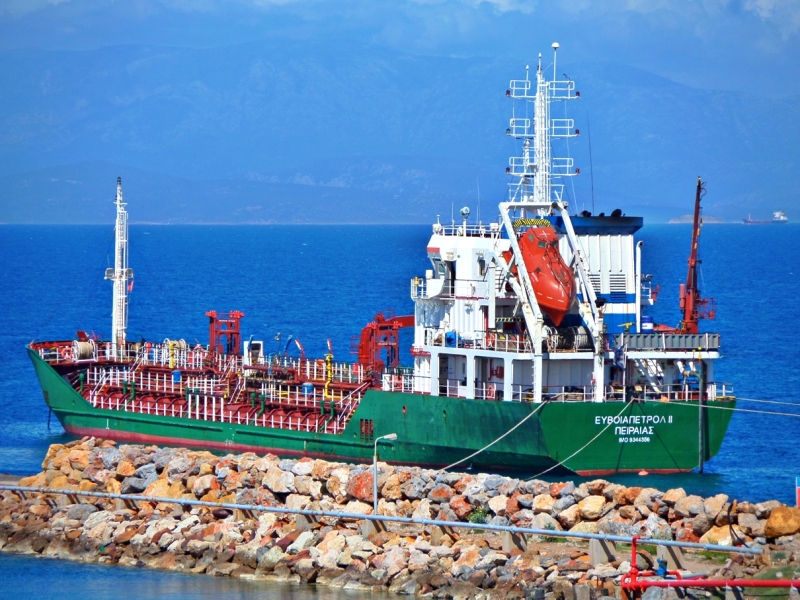

We designed this CHEMICAL TANKER to "TORAYA SHIPPING CO" for the spot market for sale. Tanker named as "AYA" but at the end of the building stage a GREEK shipping Company "Mylaki Shipping Agency LTD" bought tanker & named as "EVIAPETROL II"

The vessel designed and constructed as a single screw, diesel driven IMO II CHEMICAL TANKER CAN carry 11 different cargo grades, with double hull construction in cargo area, accommodation and machinery space located aft.

The vessel have 11 (eleven) independent cargo tanks with the total capacity of 2671.8 m3, 11 deepwell type cargo pump located on main deck, in charge for the cargo operations.

    TECHNICAL SPECIFICATIONS

  • Name of Vessel: M/T AYA
  • Owner: TORAYA SHIPPING
  • Type of Vessel: IMO II Chemical Tanker
  • Flag: Turkish
  • Classification Society: Bureau Veritas
  • Hull Material: Steel Gr.A & AH36
  • Max Speed: 12.0
  • Accommodation: 12 person
  • MAIN DIMENSIONS

  • LOA: 77.60m
  • LBP: 72.40m
  • Moulded Breadth: 12.00m
  • Maximum Breadth: 12.00m
  • Depth: 5.40m
  • Draught: 4.60m
  • Deadweight: 2204t.
  • Gross Tonnage: 1539
  • MAIN PROPULSION

  • Main Engine: WARTSILA 6L20
  • Power: 1200kW@1000rpm
  • Propeller: C.P.P.
  • Generators: 2x400kVA+565kVA(shaft generator)+165kVA
  • CAPACITIES

  • Cargo: 2671.8m3
  • Ballast: 915m3
  • HFO: 90.9m3
  • MDO: 50m3
  • FW: 70m3
