M/T TEVFIK KUYUMCU

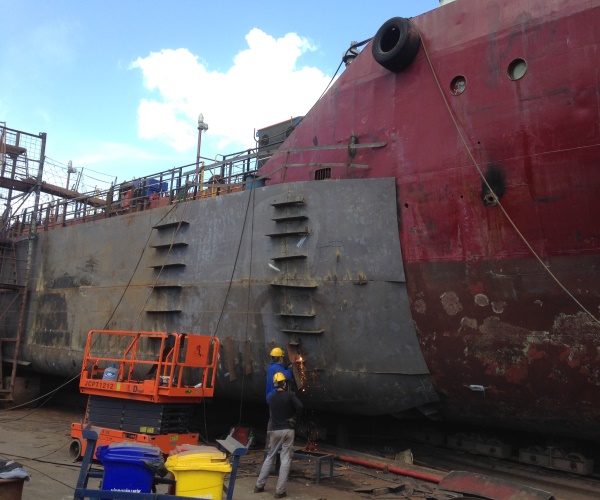

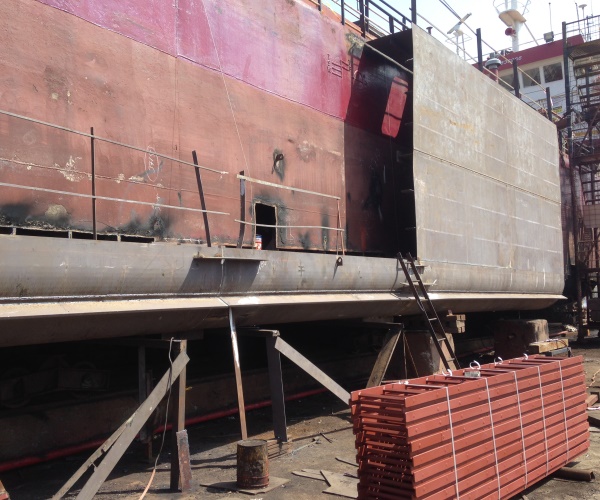

TEVFIK KUYUMCU converted from single hull to double hull tanker with adding sponsons construction to cargo area

According to New regulations TEVFIK KUYUMCU is not able to carry heavy petroleum products, we find solution with the sponsons construction.

With this solution vessel; didnot lost any cargo volume, faster solution for the construction, no work in cargo tanks & heating coils, gain more DWT capacity with the increase of the displacement

    TECHNICAL SPECIFICATIONS

  • Name of Vessel: TEVFIK KUYUMCU
  • Owner: Alpagul Deniz Hizmetleri
  • Type of Vessel: Oil Product Tanker
  • Flag: Turkish
  • Classification Society: Turk Loydu
  • Hull Material: Steel Gr.A
  • Max Speed: 12.0
  • Accommodation: 10 person
  • MAIN DIMENSIONS

  • LOA: 73.25m
  • LBP: 65.80m
  • Moulded Breadth: 11.10m
  • Maximum Breadth: 11.10m
  • Depth: 4.45m
  • Draught: 3.80m
  • Deadweight: 1605
  • Gross Tonnage: 992
  • MAIN PROPULSION

  • Main Engine: SKL
  • Power: 736kW@375rpm
  • Propeller: Fixed Screw Propeller
  • Generators: 2x92kVA
  • CAPACITIES

  • Cargo: 1940.9m3
  • Ballast: 690.5m3
  • HFO: n.a.
  • MDO: 43.2m3
  • FW: 36.7m3
